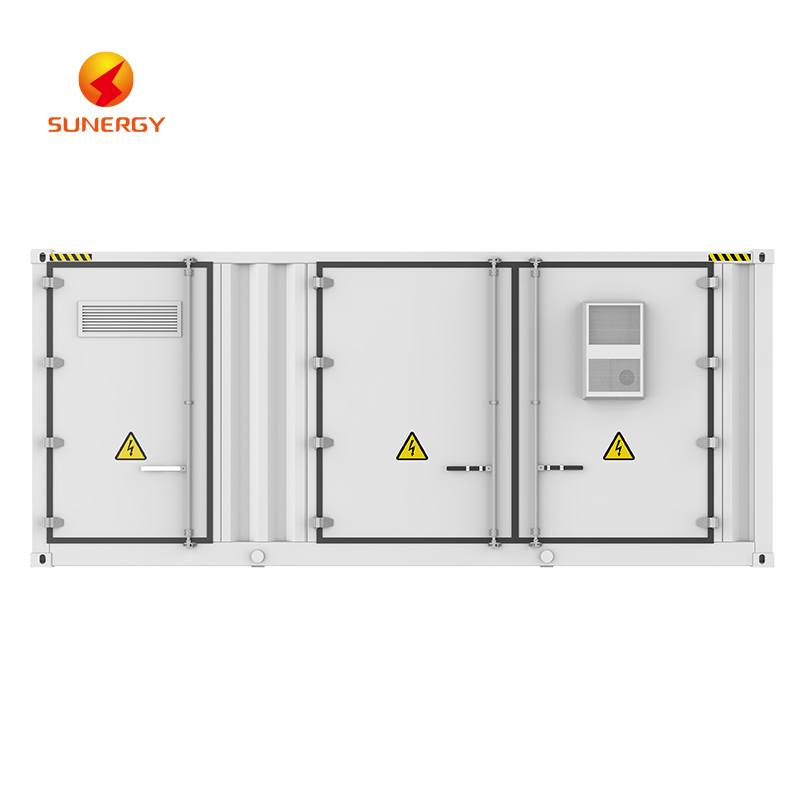

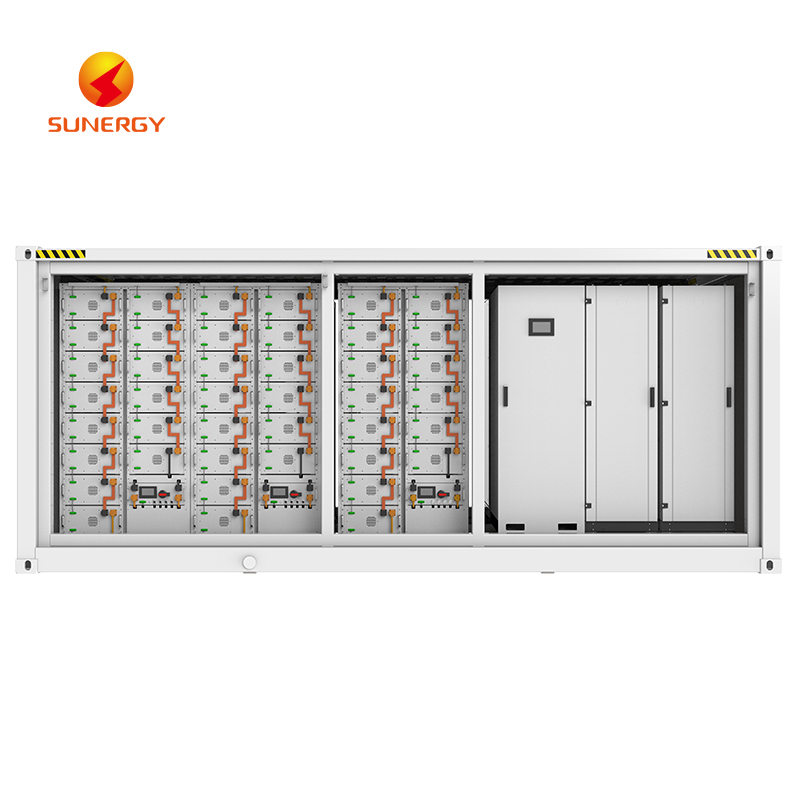

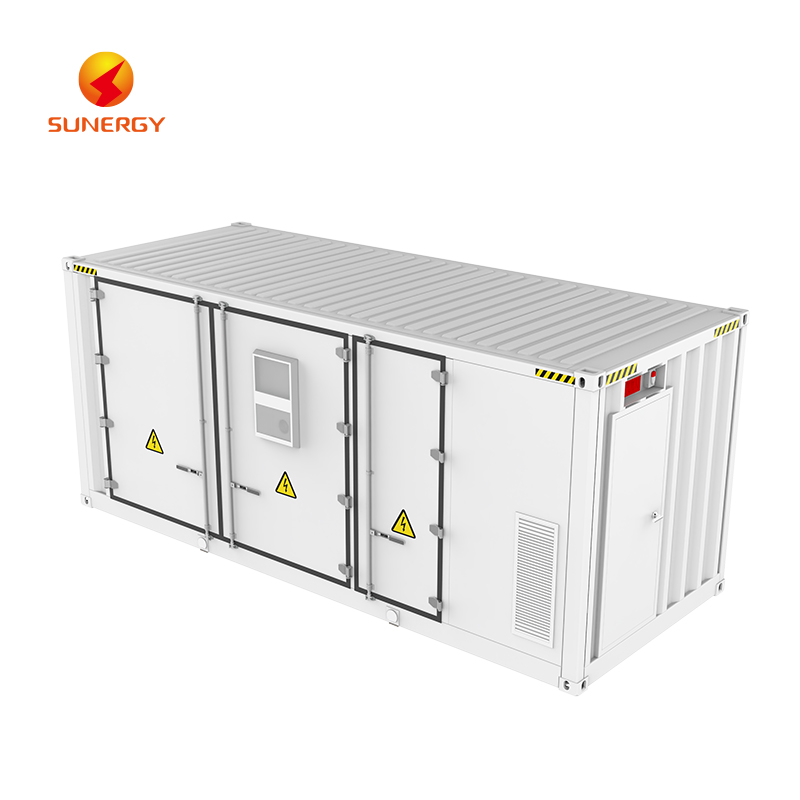

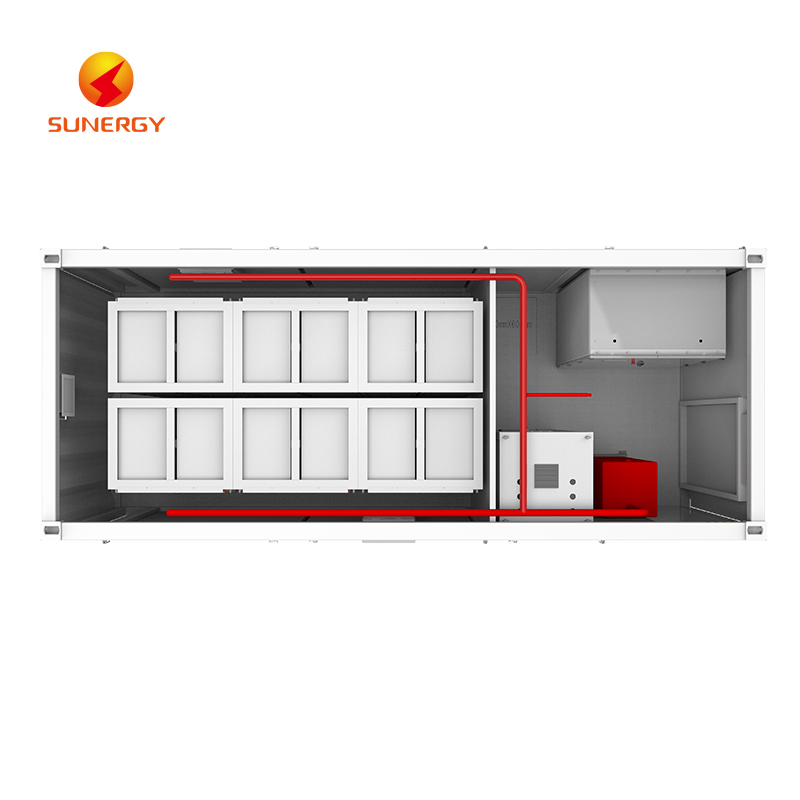

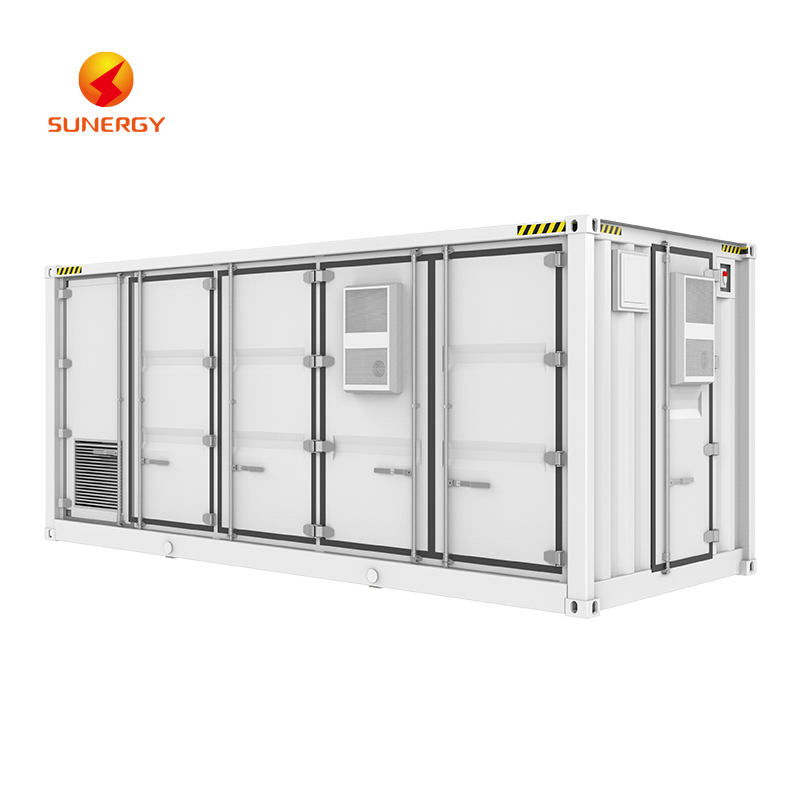

CONTAINER ENERGY STORAGE SYSTEM

Model:CNTAINER ENERGY STROAGE SYSTEM

Rated Power: 1-100MW

Descriere:

SUNERGY battery energy storage system (BESS) containers are based on a modular design. They canbe configured to match the required power and capacity requirements of client’s application.Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storageprojects. The energy storage containers can be used in the integration of various storagetechnologies and for different purposes.

Specificatii mecanice:

  • Marca

    SUNERGY/CHINALAND/sau Personalizat

  • Tip baterie

    Lead-Acid, Lithium Ion

  • Nominal Voltage

    400-850V

  • PV Mounting System

    Customized

  • Communication Interface

    Can

  • Panou solar

    Mono crystalline or poly crystalline

  • Installation Site

    Ground

  • Protection

    Short Circuit, Over load, Lightning

  • Frecvența rețelei AC (gamă*)

    50-60Hz
Cantitate minima de comanda: 1 set.

Acțiune :

INTROBAȚI ACUM
Product Type1.9MW/3.8MWH3.8MW/7.6MWH1.26MW/2.5MWH2.9MW/5.8MWH
basic parameters
Rated Power(KW)1668333412602900
Rated Capacity(KWH)3801.67603.22580.485849.088
Charge/discharge Current Rate(C)0.50.5
Eficienţă≥95%≥92.5%
Cooling MethodLiquid CoolingForced Air Cooling
Operating Temp‘-40℃~+70℃-30℃~+55℃
Protection LevelIP54IP54
Operating Altitudeno more than 3000mno more than 3000m
Cycle Life≥8000≥6000
Dimension(L*W*H)(mm)6900*2438*2896（6900*2438*2896）*26095*2438*289612192*2438*2896
Weight(t)35752545
DC side parameters
Operating Voltage Range(V)1000-15001000-1500600-9001000-1500
Nominal Voltage(V)1267.2DC1267.2DC768DC1305DC
Nominal Capacity(KWH)3801.67603.225005800
Serial Parallel Mode18S1P18S1P24S1P24S1P
Nominal Charge/Discharge Current(A)150015008402240
Grid side parameters
Nominal Voltage(V)400AC400AC
AC Side Frequency(Hz)50Hz/60(adaptable)50Hz/60(adaptable)

Mai multe detalii, bine ați venit să ne contactați în orice moment.

Tel/Whatsapp/Wechat: +86 13865941591

E-mail: info@sunergyworks.com
